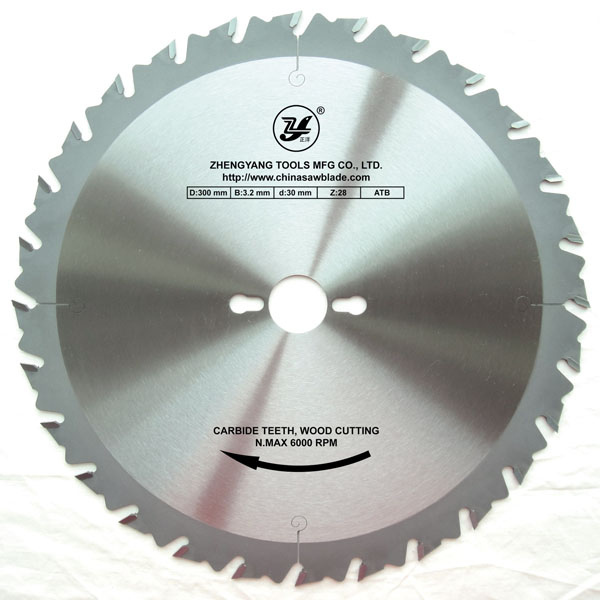

TCT Circular Saw Blades for wood ripping cut. |
|
 |
The TCT Circular Saw Blades (Sierras Circulars) are designed as ripping cut blades, which can be used for ripping cut softwood and hardwood along the grain and occasional crosscut, also suitable for cutting plywood and chipboard.
Quality Grade: For Industrial, For Professional Market.
Bore: Available all size and kind upon request, such as 5/8”, 1”, 20mm, 22.23mm, 25mm, 30mm, 35mm, etc…
Teeth: Teeth number could be adjusted upon request. |
Types and designs of teeth and shoulder:
 |
 |
 |
 |
 |
| ATB |
FT |
Shoulder-A |
Shoulder-B |
Shoulder-C |
|
Recommend cutting materials:
|
Size and Specifications:
| CODE |
Diameter (mm) |
Kerf, B/b |
Teeth Number |
ZWR 200 |
200 |
2.8/1.8 |
16, 20, 24 |
ZWR 230 |
230 |
2.8/1.8 |
16, 20, 24 |
ZWR 235 |
235 |
2.8/1.8 |
16, 20, 24 |
ZWR 250 |
250 |
3.0/2.0 |
16, 18, 24, 28, 30 |
ZWR 270 |
270 |
3.0/2.0 |
16, 18, 24, 28, 30 |
ZWR 300 |
300 |
3.2/2.2 |
20, 24, 28, 30, 32, 36 |
ZWR 315 |
315 |
3.2/2.2 |
20, 24, 28, 30, 32, 36 |
ZWR 330 |
330 |
3.2/2.2 |
24, 28, 30, 32, 36, 40, 42 |
ZWR 350 |
350 |
3.2/2.2 |
24, 28, 30, 32, 36, 40, 42, 48 |
ZWR 400 |
400 |
3.5/2.5 |
28, 30, 32, 34, 36, 40, 48, 60 |
ZWR 450 |
450 |
3.5/2.5 |
32, 34, 36, 42, 54, 66 |
ZWR 500 |
500 |
3.5/2.5 |
32, 36, 40, 44, 48, 60, 64, 72 |
ZWR 550 |
550 |
3.8/2.8 |
32, 40, 44, 48, 50, 60, 80 |
ZWR 600 |
600 |
4.0/3.0 |
36, 40, 44, 48, 54, 56,72, 90, 96 |
ZWR 650 |
650 |
4.0/3.0 |
40, 48, 52, 56, 72, 90, 96, 108 |
ZWR 700 |
700 |
4.2/3.2 |
44, 48, 56, 60, 84, 90, 108, 116 |
ZWR 750 |
750 |
4.6/3.6 |
48, 54, 56, 60, 84, 90 |
ZWR 800 |
800 |
5.0/4.0 |
50, 54, 60, 72, 84, 96 |
ZWR 850 |
850 |
5.5/4.0 |
50, 54, 60, 72, 84, 102 |
ZWR 900 |
900 |
6.0/4.5 |
50, 54, 60, 90, 96, 108 |
ZWR 950 |
950 |
6.0/4.5 |
60, 80, 90, 96, 114 |
ZWR 1000 |
1000 |
7.0/5.5 |
80, 90, 100, 120 |
ZWR 1100 |
1100 |
7.0/5.5 |
90, 100, 110, 130 |
ZWR 1200 |
1200 |
7.0/5.5 |
100, 120, 140 |
Remark |
Other specifications & sizes are available upon request. |
|
|
