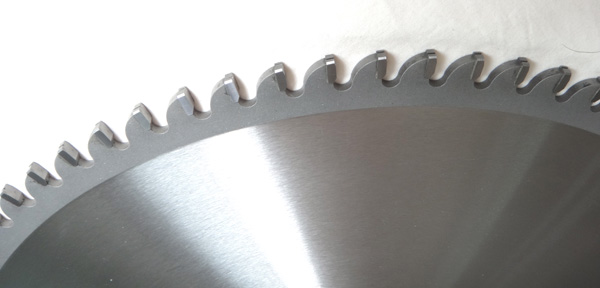

TCT Circular Saw Blades for cutting steel pipe. |
|
|
 |
The TCT Circular Saw Blades (Sierras Circulars) are specially designed as steel pipes cutting blades. The blades are applied in seamless steel pipe plant to cut various hot-rolled seamless pipes after cooling and straightening. Several parallel pipes can be cut at one time which increases the efficiency and quality. The blade also can be used to cut cast iron and non-ferrous metals like aluminium, cooper, brass etc…
Quality Grade: For Industrial.
Bore: Available all size and design upon request, such as 60mm, 80mm, 100mm, 150mm, etc…
Teeth: Teeth number could be adjusted upon request. Hook angle could be adjusted upon request. |
Types and designs of teeth and shoulder:
 |
 |
|
|
|
| FTWS |
Shoulder |
|
|
|
|
Recommend cutting materials:
 |
|
|
|
Steel pipes |
|
|
|
|
Size and Specifications:
CODE |
Diameter |
Plate thickness |
Keerf |
Teeth Number |
Inch |
mm |
mm |
mm |
ZSP 280 |
11 |
280 |
3.0 |
4.5 |
60/70/80 |
ZSP 350 |
14 |
350 |
3.5 |
5.0 |
70/80/84/90 |
ZSP 400 |
16 |
400 |
4.0 |
5.5 |
70/80/84/90 |
ZSP 450 |
18 |
450 |
4.5 |
6.0 |
80/90/100 |
ZSP 500 |
20 |
500 |
4.5 |
6.0 |
80/90/100 |
ZSP 550 |
22 |
550 |
5.0 |
6.5 |
80/90/100 |
ZSP 600 |
24 |
600 |
5.0 |
6.5 |
80/90/100 |
ZSP 660 |
26 |
660 |
5.0 |
6.5 |
80/90/100 |
ZSP 710 |
28 |
710 |
5.0 |
6.5 |
80/90/100 |
ZSP 760 |
30 |
760 |
5.5 |
7.0 |
80/90/100 |
ZSP 800 |
32 |
800 |
5.5 |
7.0 |
80/90/100 |
ZSP 850 |
34 |
850 |
5.5 |
7.0 |
80/90/100/110 |
ZSP 910 |
36 |
910 |
6.0 |
7.5 |
80/90/100/110 |
ZSP 965 |
38 |
965 |
6.0 |
7.5 |
90/100/110/120 |
ZSP 1015 |
40 |
1015 |
6.0 |
7.5 |
100/110/120/130 |
ZSP 1067 |
42 |
1067 |
6.5 |
8.0 |
110/120/130/140 |
ZSP 1118 |
44 |
1118 |
6.5 |
8.0 |
120/130/140/150 |
ZSP 1168 |
46 |
1168 |
6.5 |
8.5 |
120/130/150/160 |
ZSP 1219 |
48 |
1219 |
6.5 |
8.5 |
120/130/150/160 |
ZSP 1270 |
50 |
1270 |
6.5 |
8.5 |
120/130/150/160 |
ZSP 1320 |
52 |
1320 |
7.0 |
9.0 |
120/140/160/180 |
ZSP 1370 |
54 |
1370 |
7.0 |
9.0 |
120/140/160/180 |
ZSP 1420 |
56 |
1420 |
7.5 |
9.5 |
140/160/180/200 |
ZSP 1470 |
58 |
1470 |
7.5 |
9.5 |
140/160/180/200 |
ZSP 1520 |
60 |
1520 |
7.5 |
9.5 |
140/160/180/200 |
ZSP 1570 |
62 |
1570 |
8.0 |
10.0 |
140/160/180/200 |
ZSP 1620 |
64 |
1620 |
9.0 |
10.5 |
140/160/180/200 |
ZSP 1675 |
66 |
1675 |
9.0 |
10.5 |
140/160/180/200/210 |
ZSP 1720 |
68 |
1720 |
9.0 |
10.5 |
140/160/180/200/220 |
ZSP 1778 |
70 |
1778 |
9.0 |
10.5 |
140/160/180/200/220 |
ZSP 1825 |
72 |
1825 |
9.0 |
10.5 |
160/180/200/220/230 |
Notice |
Other specifications & sizes are available upon request. |
|
|
|
