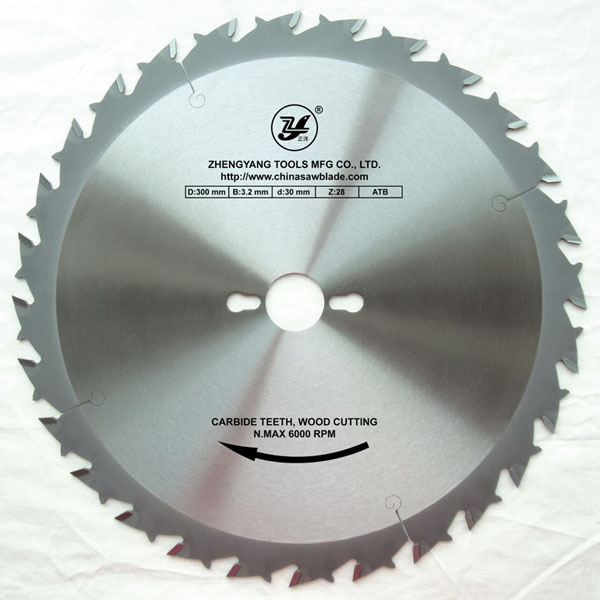

TCT Circular Saw Blades with chip limiting device for cutting wood. |
|
 |
The TCT Circular Saw Blades (Sierras Circulars) are designed with chip limiting devices that stop blades kick back. The blades are suitable for ripping cut softwood and hardwood, panels, as well as single sided veneered or plastic-coated board. Without possibility of kick back, the blades are especially appropriated for cutting boards, in carpentry works & construction site.
Quality Grade: For Industrial, For professional market.
Bore: Available all size and kind upon request, such as 5/8”, 1”, 20mm, 22.23mm, 25mm, 30mm, 35mm, etc…
Teeth: Teeth number could be adjusted upon request. Hook angle could be adjusted upon request. |
Types and designs of teeth and shoulder:
 |
 |
 |
 |
 |
| ATB |
FT |
Shoulder-B |
Shoulder-C |
|
|
Recommend cutting materials:
 |
 |
|
|
| Soft wood |
Hard wood |
|
|
|
Size and Specifications:
CODE |
Diameter (mm) |
Kerf, B/b |
Teeth Number |
FT Teeth |
ATB Teeth |
ZWAK 180 |
180 |
2.8/1.8 |
20 |
24 |
ZWAK 200 |
200 |
2.8/1.8 |
24 |
24 |
ZWAK 230 |
230 |
2.8/1.8 |
24 |
24 |
ZWAK 250 |
250 |
3.0/2.0 |
16, 18, 20, 24 |
16, 18, 20, 24 |
ZWAK 270 |
270 |
3.0/2.0 |
16, 18, 20, 24 |
16, 18, 20, 24 |
ZWAK 300 |
300 |
3.2/2.2 |
18, 20, 24, 30 |
18, 24, 28, 32 |
ZWAK 315 |
315 |
3.2/2.2 |
18, 20, 24, 30 |
18, 24, 28, 32 |
ZWAK 335 |
335 |
3.2/2.2 |
24, 30, 32 |
28, 32, 36 |
ZWAK 350 |
350 |
3.2/2.2, 3.5/2.5 |
24, 30, 32 |
28, 32, 36 |
ZWAK 370 |
370 |
3.5/2.5 |
26 |
26, 32 |
ZWAK 400 |
400 |
3.5/2.5 |
28, 36 |
28, 32, 36 |
ZWAK 450 |
450 |
3.5/2.5 |
24, 32 |
36, 40 |
ZWAK 500 |
500 |
3.5/2.5, 3.8/2.8 |
36 |
36, 40, 44 |
ZWAK 550 |
550 |
3.8/2.8 |
36 |
44, 48 |
ZWAK 600 |
600 |
4.0/3.0 |
36 |
40, 48, 54 |
ZWAK 700 |
700 |
4.2/3.2 |
42, 44, 56 |
48, 54, 60, 62 |
Remark |
Other specifications & sizes are available upon request. |
|
|
