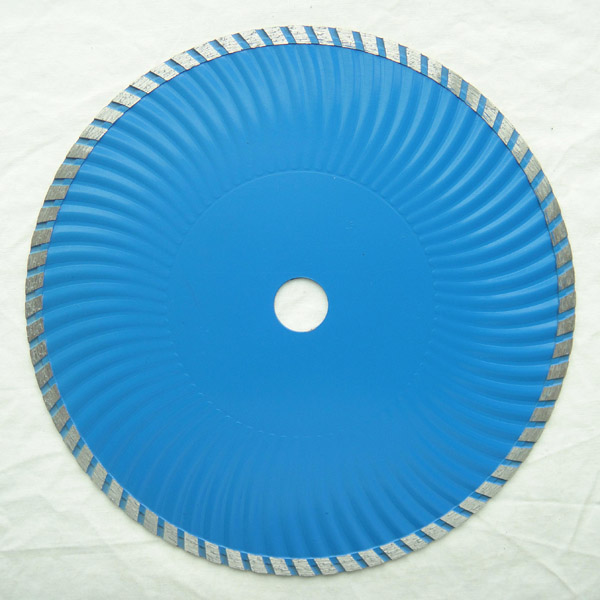

Diamond Saw Blades. Sintered, Wave turbo.

The Diamond blades are designed for cutting Concrete, Granite, Slate, Marble, Terrazzo, Ceramic Pipe, Clay Pipe, Clay Tiles, Refractory, Ceramic, Engineering Brick & Block, Paviors, Stones, Fiber Glass Products, Plastic, General building materials ,etc…
REMARK: Other Specifications & Sizes are available upon request. Bond & Diamond is adjustable upon request to cut specific materials.
Suitable: Dry & Wet cutting.

Size and Specifications:

Diameter(D)		Arbor (H)	Core	Segments Size(mm)		Art. Code
Inch	mm	mm	mm	Width(T)	Height(W)	Art. Code
4”	105	16/20/22.23	1.2	2.6	8.0/10	WT105
4-3/8”	110	16/20/22.23	1.4	2.6	8.0/10	WT110
4-1/2”	115	20/22.23	1.4	2.6	8.0/10	WT115
5”	125	20/22.23	1.4	2.6	8.0/10	WT125
6”	150	20/22.23	1.4	2.6	8.0/10	WT150
7”	180	16/22.23/25.4/30	1.6	2.8	8.0/10	WT180
8”	200	22.23/25.4/30	1.8	3.0	9.0/10	WT200
9”	230	22.23/25.4/30/50	1.8	3.1	9.0/10	WT230
10”	250	22.23/25.4/30/50	2.2	3.2	9.0/10	WT250
12”	300	20/22.23/25.4/30/50	2.4	3.4	9.0/10/12	WT300
14”	350	22.23/25.4/30/50	2.6	3.6	9.0/10/12	WT350
