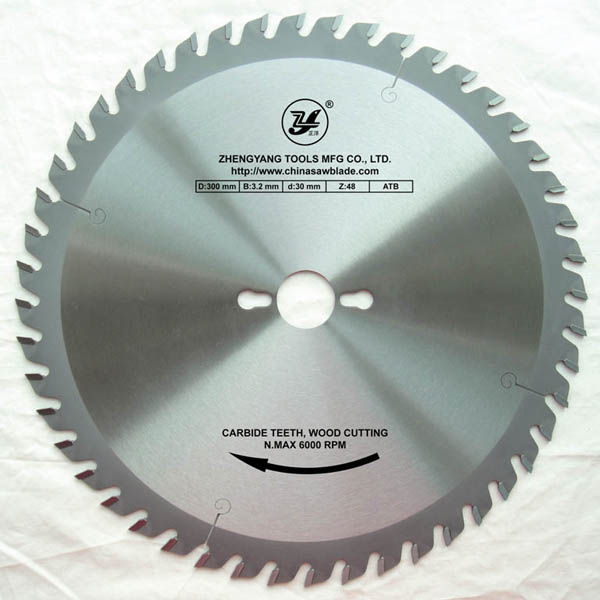

TCT Circular Saw Blades for wood. General propose cut. |
|
 |
The TCT Circular Saw Blades (Sierras Circulars) are designed as general purpose blades for ripping and cross cutting softwood, hardwood, plywood, chipboard, multi-board, panels.
Providing a good finish edge. Fit to sizing saws, table saws, cross cut saws.
Quality Grade: For Industrial, For professional market.
Bore: Available all size and kind upon request, such as 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm, etc…
Teeth: Teeth number could be adjusted upon request. Hook angle could be adjusted upon request.
|
Types and designs of teeth and shoulder:
 |
 |
 |
 |
 |
| ATB |
FT |
Shoulder-A |
Shoulder-B |
Shoulder-C |
|
Recommend cutting materials:
 |
 |
 |
 |
| Soft wood |
Hard wood |
Plywood |
Multi-board |
 |
|
 |
|
| MDF & HDF |
|
Chipboard |
|
|
Size and Specifications:
CODE |
Diameter (mm) |
Kerf, B/b |
Teeth Number |
ZWU 125 |
125 |
2.4/1.4, 2.6/1.6 |
20 |
ZWU 130 |
130 |
2.4/1.4, 2.6/1.6 |
20 |
ZWU 140 |
140 |
2.5/1.5, 2.6/1.6 |
20 |
ZWU 150 |
150 |
2.5/1.5, 2.6/1.6 |
24 |
ZWU 160 |
160 |
2.5/1.5, 2.6/1.6 |
24 |
ZWU 165 |
165 |
2.5/1.5, 2.6/1.6 |
28 |
ZWU 180 |
180 |
2.6/1.6, 2.8/1.8 |
24, 30 |
ZWU 184 |
184 |
2.6/1.6, 2.8/1.8 |
24, 30 |
ZWU 190 |
190 |
2.6/1.6, 2.8/1.8 |
24, 30, 32, 36 |
ZWU 200 |
200 |
2.8/1.8 |
24, 30, 32, 36 |
ZWU 210 |
210 |
2.8/1.8 |
32, 36 |
ZWU 230 |
230 |
2.8/1.8 |
36, 40 |
ZWU 235 |
235 |
2.8/1.8 |
36, 40 |
ZWU 250 |
250 |
3.0/2.0 |
40, 42 |
ZWU 255 |
255 |
3.0/2.0 |
30, 42 |
ZWU 260 |
260 |
3.0/2.0 |
30, 42 |
ZWU 270 |
270 |
3.0/2.0 |
30, 42 |
ZWU 300 |
300 |
3.0/2.0 |
36, 42, 48 |
ZWU 315 |
315 |
3.0/2.0, 3.2/2.2 |
36, 42, 48 |
ZWU 335 |
335 |
3.2/2.2 |
46, 42, 48 |
ZWU 350 |
350 |
3.2/2.2 |
40, 48, 54, 56, 60 |
ZWU 380 |
380 |
3.5/2.5 |
48, 54, 64 |
ZWU 400 |
400 |
3.5/2.5 |
54, 60, 64 |
ZWU 450 |
450 |
3.5/2.5 |
60, 66, 72, 80 |
ZWU 500 |
500 |
3.5/2.5, 3.8/2.8 |
66, 72, 80, 100 |
ZWU 550 |
550 |
3.8/2.8 |
72, 80, 90, 100,110 |
ZWU 600 |
600 |
4.0/3.0 |
80, 90, 100, 120 |
ZWU 650 |
650 |
4.0/3.0 |
80, 90, 100, 120 |
ZWU 700 |
700 |
4.2/3.2 |
80, 90, 100, 120 |
ZWU 750 |
750 |
4.2/3.2, 4.6/3.6 |
80, 90, 100, 120 |
| Remark |
Other specifications & sizes are available upon request. |
|
|
